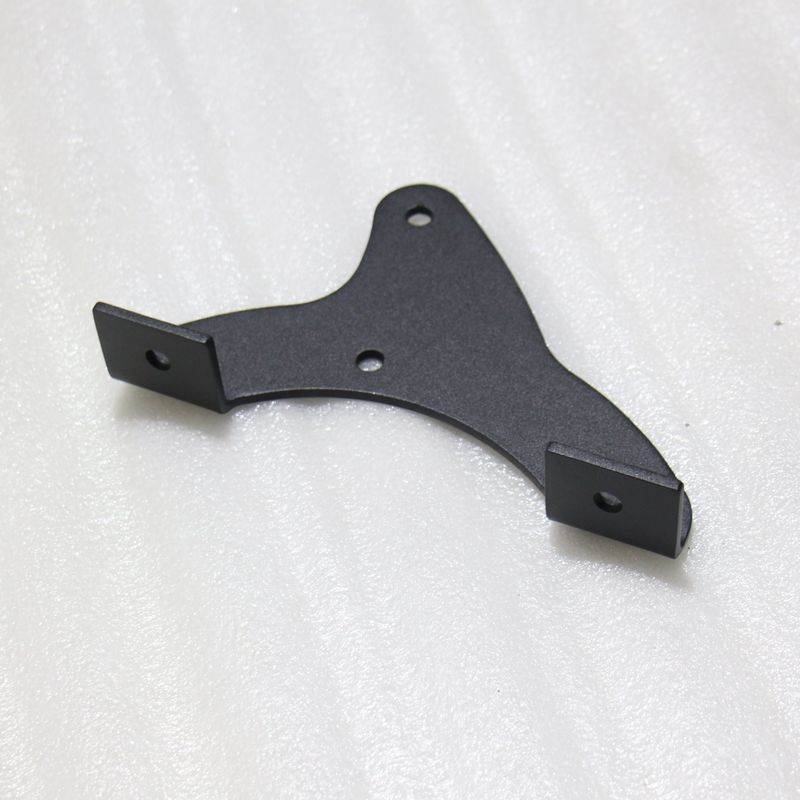

Electroplating SGCC Precision Sheet Metal Fabrication Parts Welding Metal Parts

China Precision Sheet Metal Fabrication Parts Welding Metal part

Welding is a common and critical operation in metal sheet processing, and it involves joining two or more pieces of sheet metal together by melting their edges and fusing them to form a strong and durable bond. The welding process for sheet metal is highly versatile, but specific techniques and considerations are necessary to achieve quality welds. Here are the key aspects of welding operations in metal sheet processing:

1. Welding Method Selection:
   • Choose the appropriate welding method based on the type of metal, sheet thickness, joint design, and application requirements. Common welding methods for sheet metal include:
     • MIG Welding (Metal Inert Gas): Uses a wire electrode and a shielding gas. It is suitable for a wide range of materials and thicknesses.
     • TIG Welding (Tungsten Inert Gas): Uses a non-consumable tungsten electrode and a shielding gas. It provides high precision and is often used for thin sheets and non-ferrous metals.
     • Spot Welding: Employs resistance to create localized welds, typically used for joining overlapping sheets, such as in automotive body panels.
     • Stud Welding: Used to attach studs or fasteners to sheet metal surfaces.
     • Seam Welding: Creates continuous welds along the length of a seam, ideal for producing airtight or watertight joints.
2. Joint Design:
   • The joint design influences the welding process and the strength of the weld. Common joint configurations include butt joints, lap joints, T-joints, and corner joints. Proper joint design ensures good penetration and weld quality.
3. Fixturing and Clamping:
   • Securely clamp or fixture the sheet metal pieces in place before welding to prevent distortion, misalignment, or warping during the welding process.
4. Shielding Gas (for MIG and TIG Welding):
   • MIG and TIG welding require a shielding gas to protect the weld area from atmospheric contamination. The choice of gas depends on the material being welded. Common shielding gases include argon, helium, and carbon dioxide.
5. Electrode and Filler Material:
   • Select the appropriate electrode and filler material for the welding process. The filler material should match the base metal to ensure a strong and compatible weld.
6. Welding Parameters:
   • Adjust welding parameters such as voltage, current, wire feed speed, and travel speed to achieve the desired weld quality and penetration. These parameters vary based on the welding method and material thickness.
7. Welding Technique:
   • Use proper welding techniques, such as maintaining a consistent travel speed, maintaining the correct arc length, and using the correct weaving or oscillating pattern, to achieve a uniform and strong weld.
8. Quality Control:
   • Inspect the welds visually and, if necessary, using non-destructive testing methods such as dye penetrant testing or X-ray inspection to ensure weld quality and integrity.
9. Post-Welding Treatment:
   • After welding, perform any required post-weld treatments, such as grinding, sanding, or polishing, to achieve the desired surface finish and remove any weld spatter or imperfections.
10. Safety Precautions:
    • Follow safety protocols, including wearing appropriate personal protective equipment (PPE), ensuring adequate ventilation, and taking precautions against arc flash and welding fumes.

Welding operations in sheet metal processing require precision, skill, and attention to detail to produce strong, reliable, and visually appealing welds. Proper training and experience are essential for welders to consistently achieve high-quality results, whether in the production of automotive components, HVAC systems, or other sheet metal applications.
