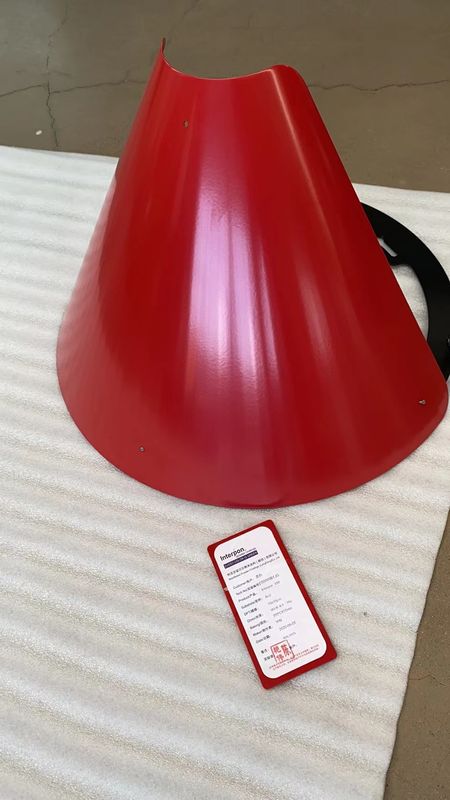

Aluminum Lamp Shade Custom Metal Fabrication With CNC Machining Bending Welding

CNC machining, which stands for Computer Numerical Control machining, is a highly automated and precise manufacturing process used to create a wide range of parts and components from various materials, including metals, plastics, and composites. The process involves the use of computer-controlled machines to remove material from a workpiece to achieve the desired shape and dimensions. Here's an overview of the CNC machining process:

1. Design: The process begins with the creation of a detailed digital 3D model of the part or component to be machined. Computer-aided design (CAD) software is commonly used for this purpose. The CAD model defines the part's geometry, dimensions, and specifications.
2. CAD-to-CAM Conversion: Once the CAD model is complete, it is converted into a format that computer-aided manufacturing (CAM) software can understand. CAM software generates toolpaths, which are the precise instructions for the CNC machine to follow in order to create the part.
3. Material Selection: The appropriate material for the part is selected based on factors such as strength, durability, heat resistance, and other application-specific requirements. Common materials include metals like aluminum, steel, and titanium, as well as plastics and composites.
4. Workpiece Preparation: A solid block or sheet of the chosen material, known as the workpiece or stock material, is secured onto the CNC machine's worktable using clamps, vises, or other fixtures. The workpiece should be properly aligned and secured to ensure accurate machining.
5. Tool Selection: Different cutting tools, such as end mills, drills, and inserts, are chosen based on the material and the complexity of the machining operation. Tool selection also depends on factors like cutting speed, feed rate, and depth of cut.
6. Machine Setup: The CNC machine is set up by inputting the necessary parameters into the computer control system. This includes specifying the work coordinates, zero point, and tool offsets. The machine's cutting tools are also loaded into the tool holders.
7. Machining Operations: The CNC machine begins the machining process by following the programmed toolpaths. The cutting tool moves along the X, Y, and Z axes with high precision, removing material from the workpiece as required. Various operations may be performed, including milling, drilling, turning, and grinding, depending on the part's design.
8. Coolant and Lubrication: Cutting generates heat, which can affect tool life and part quality. Coolant (typically a mixture of water and cutting oil) is often used to cool the workpiece and tool, reduce friction, and remove chips and debris.
9. Quality Control: Throughout the machining process, quality control measures may be implemented to monitor the dimensions and tolerances of the part being produced. This can involve in-process inspection using metrology equipment like calipers and micrometers.
10. Finishing: Once the machining operations are complete, additional finishing processes may be applied, such as deburring, sanding, or surface coating, to achieve the desired surface finish and appearance.
11. Inspection and Testing: The finished part is inspected to ensure it meets the specified tolerances and quality standards. This may involve dimensional measurements, visual inspection, and material testing.
12. Packaging and Shipping: After passing inspection, the completed parts are packaged and prepared for shipment to their intended destination.

CNC machining offers high precision, repeatability, and the ability to produce complex parts with tight tolerances. It is widely used in industries such as aerospace, automotive, medical devices, electronics, and more. CNC machines are capable of producing both prototype parts and high-volume production runs, making them a versatile manufacturing solution.
